Automatic Cnc LFL3030 cnc wood lathe machine With Spindle
Product Description
The features of the wood lathe turning machine
1-Driving system:Adopt frequency conversion speed regulation system, could adjust the turning speed
at any time to solve the problem of materials' vibration.
2-Spindle: we could configure single spindle with two pcs cutter or one pc cutter, single spindle could
configure chuck, two cutters could do rough turning and finish turning at the same time for high efficiency
and surface quality.
3-Performance part: high accuracy stepper motor and SERVO motor, after program calculating, guarantee
the exact processing size.
4-Feeding part:Taiwan CSK high quality straight line sliding rails and TBI precise ball screw, control the
linear error effectively.
5-High Class frequency converter with high stability
6-DSP Operation system d is easy to operate.

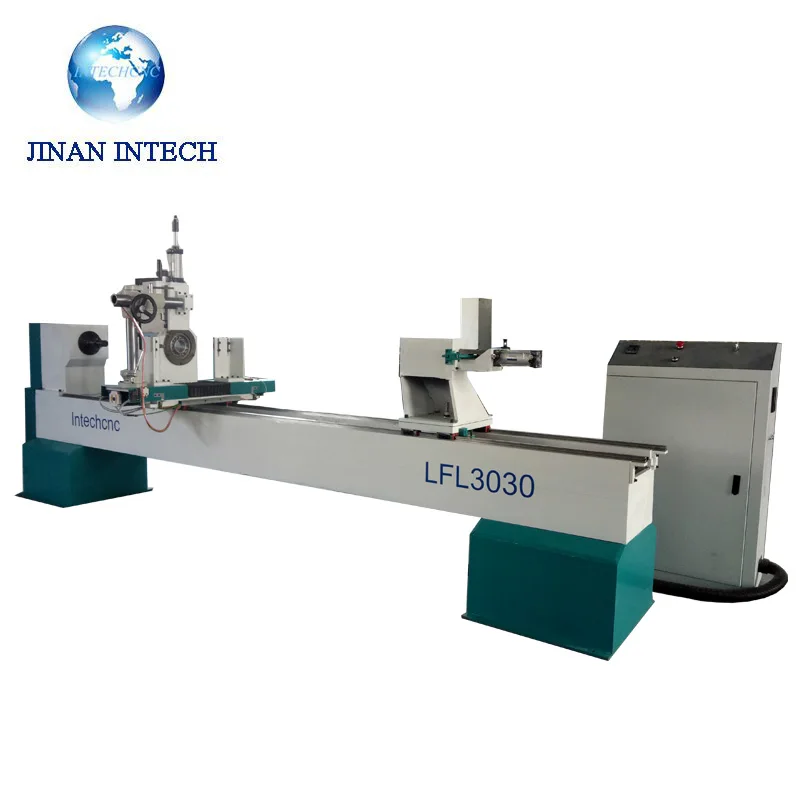

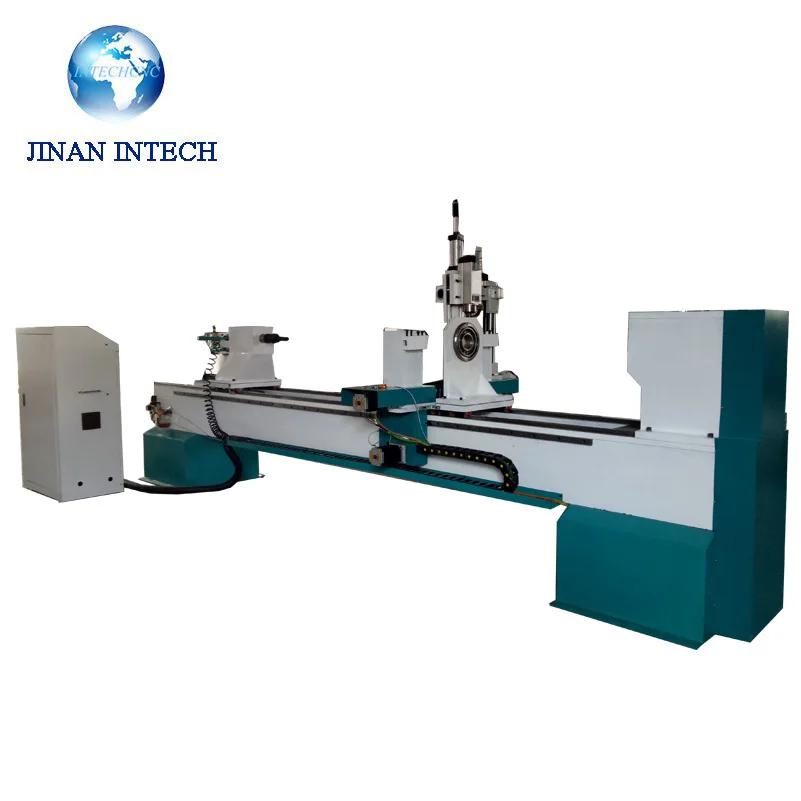

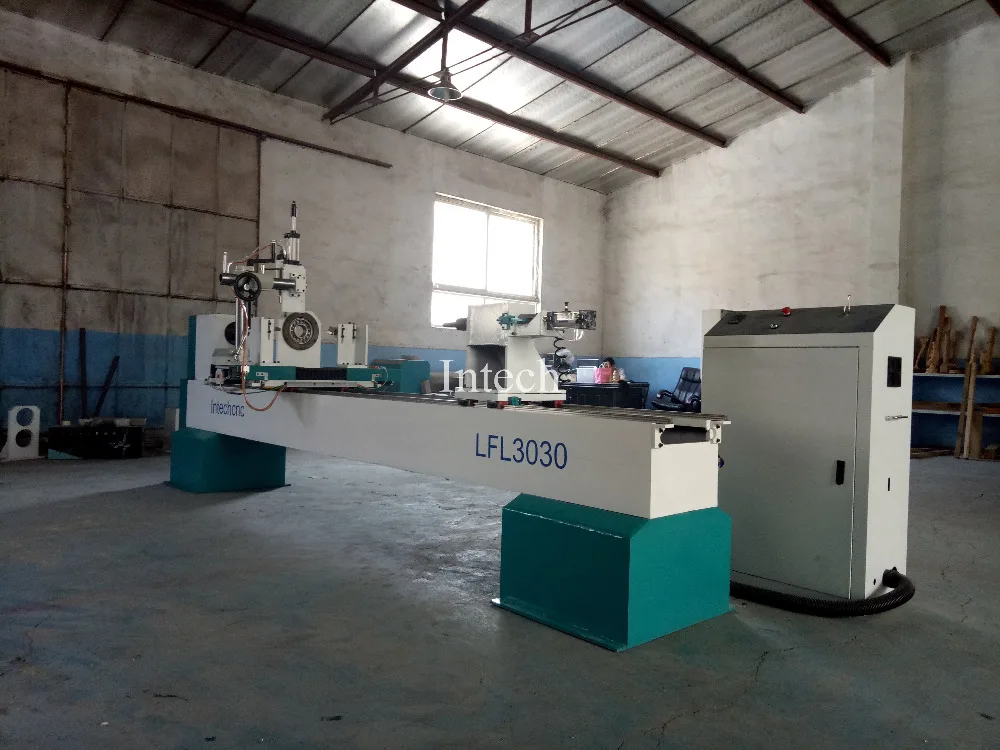

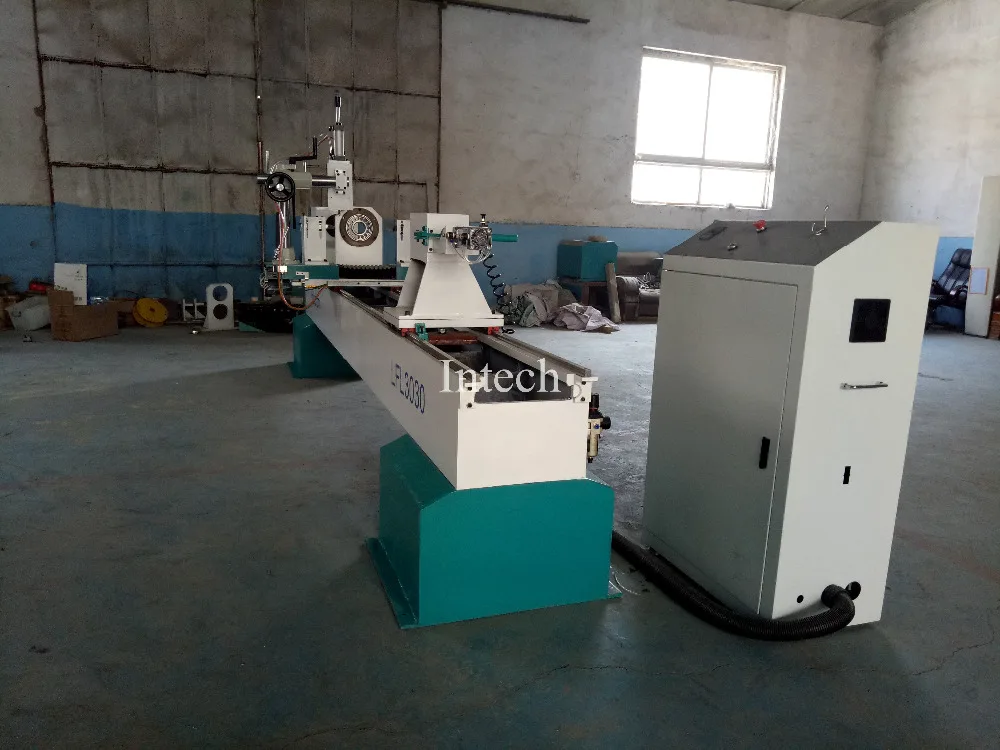

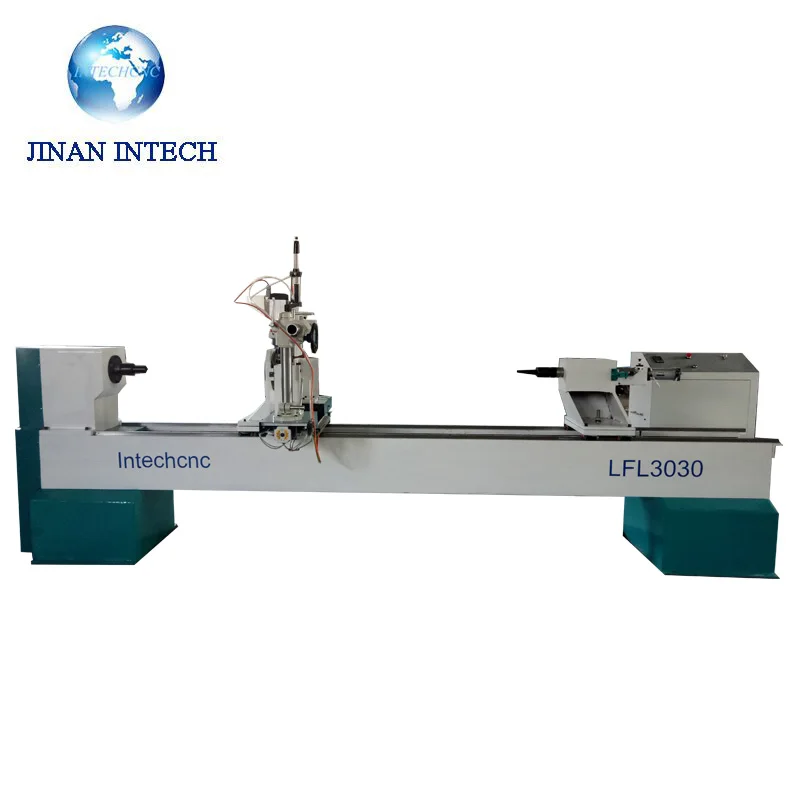

The pictures of the wood lathe turning machine
The application of the wood lathe turning machine
cnc wood lathe/woodworking machine/baseball bat cnc wood turning lathe Various cylindrical workpiece,
bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column,
general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden
furniture, children' s bed column, etc.
The technical data of the wood lathe turning machine
| Cnc wood lathe LFL3030 double knife | |
| Item | Specifications |
| Max processing length | 3000mm(can custom 1500/2000/2500mm) |
| Max turning diameter | Single shaft use max 320mm |
| Air pressure | 0.6-0.8Mpa |
| Powersupply | AC 380V 3 phase 50HZ/60HZ(can custom 220V) |
| Max feed rate | 200cm/min |
| min setting unit | 0.01cm |
| Transimission type | ballscrew for X Z axis,gear for Y axis |
| Guider | Taiwan Hiwin orbit |
| Main shaft rotating speed | 0-3000r/min |
| Motor power | 4kw |
|
| |
| Cutter material | Super hard alloy |
| Control System | DSP control system |
| Motor | Stepper motor |
| Driver | Yako driver |
| Inverter | Best inverter |
| Drawing Software | AutoCAD |
| Hand controller recognise file format | *.dxf |
| Machine size | 4*1,1*1.4m |
| Packing size | 4.6*1.3*1.7 |
| N.W | 1800kg |
| G.W | 2000kg |
The machine parts of the wood lathe turning machine
The samples of the wood lathe turning machine

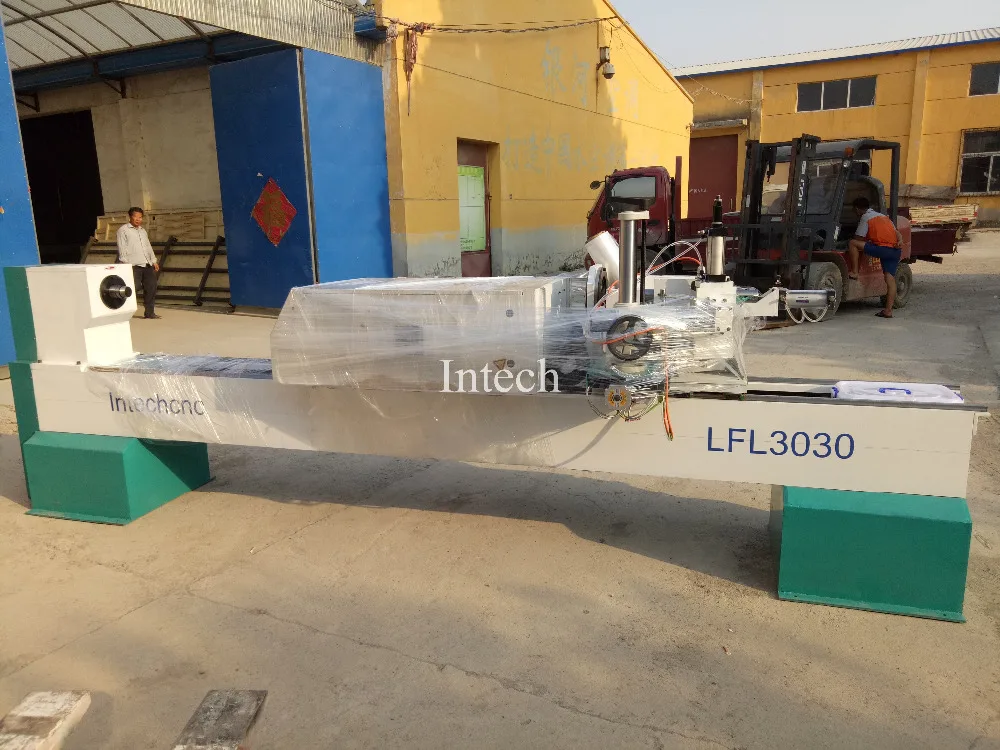

Packaging & Shipping
Inside Packing
· Use professional Stretch Film to cover the whole lathe.
· Stretch film package with foam protection in each corner.
Outside Packing
· Sandard export wooden cases and pylwood cases.
· Save space as much as possible for container loading.
Transport
· We support shipping, air, land and express.
· You can choose the most suitable way of transport.
If you have any special request for packing, we can do it.
Our Services
Training and Use
1. We will supply with the machine operation manual in English version for installing and
operation.
2.Customer can come to our factory training .
Warranty and After service
1. Our warranty is 24 months counting from the date when the Machine arrives at the port of destination.
2. We will supply after service 24 hours,customer can contact us any time.
3.When some problems can’t be solved by customers, our engineer can go to door to help.
