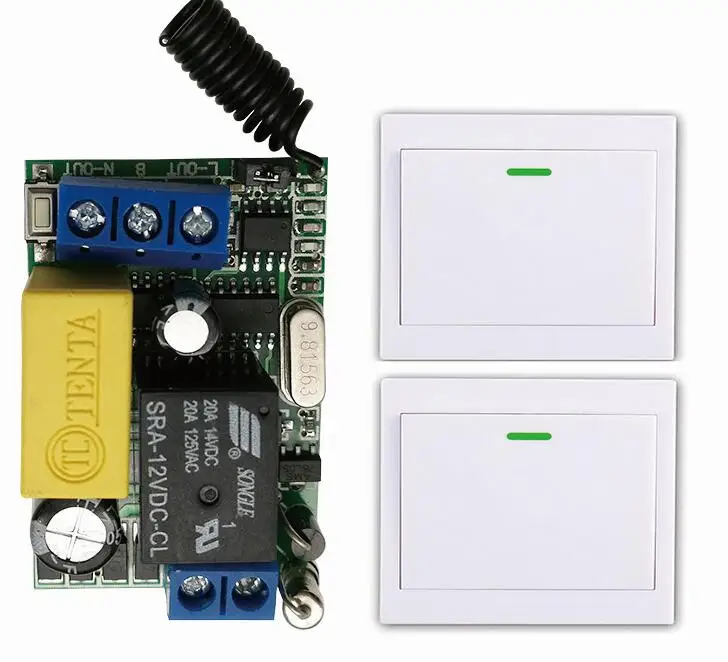

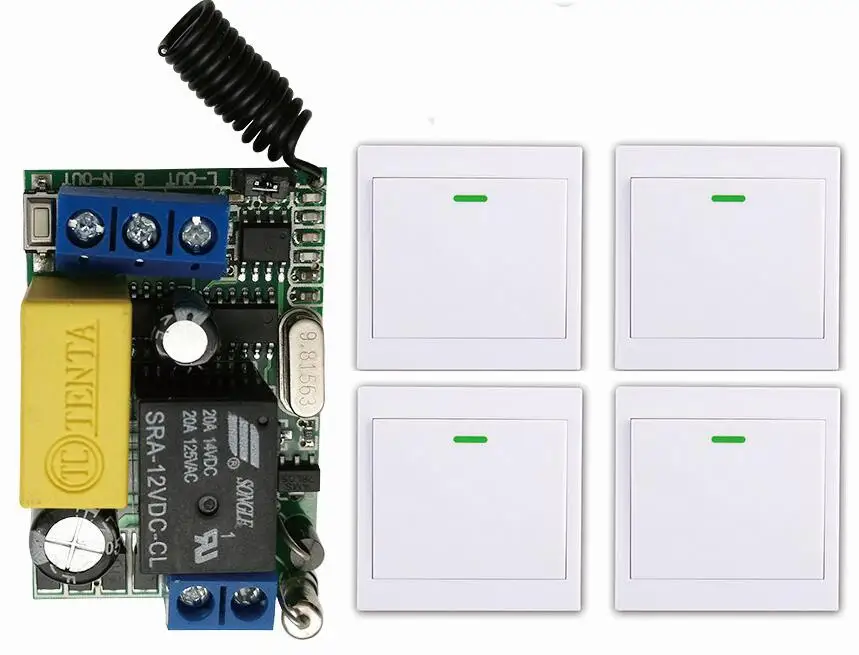

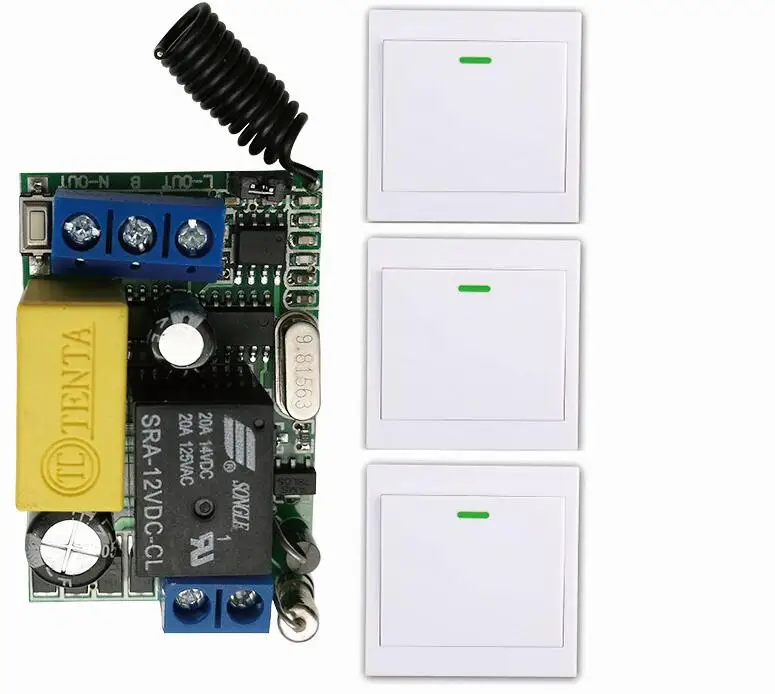

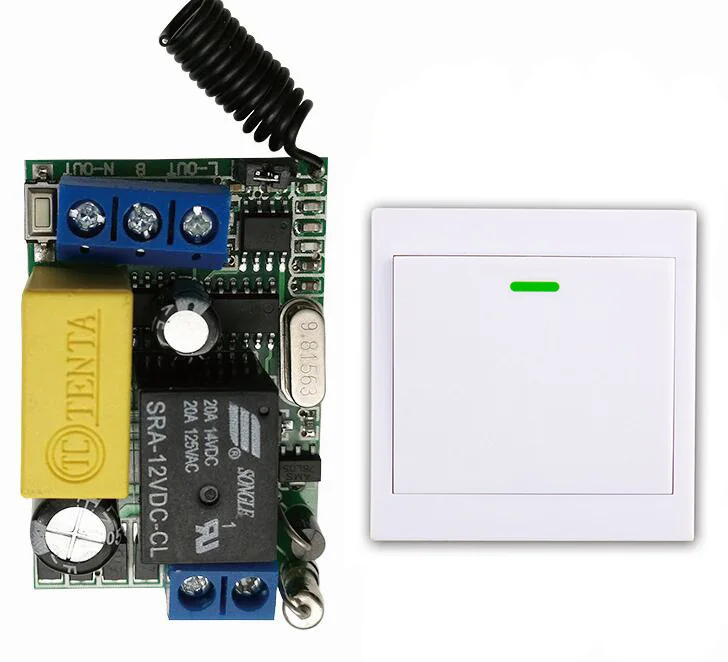

1.Receiver

Working Voltage: AC220V (Input AC220V Output AC220V)

Max Current: 10A (have better lower than 7A )

Channel: 1CH

Working Frequency : 315MHZ/433.92MZH

Receiver sensitivity: : -105Db

Working temperature : -10\'C - +60\'C

Output way : Momentary. Toggle .Latched Adjustable

Code type: Learning code Add Controller by the Learning Button on the receiver

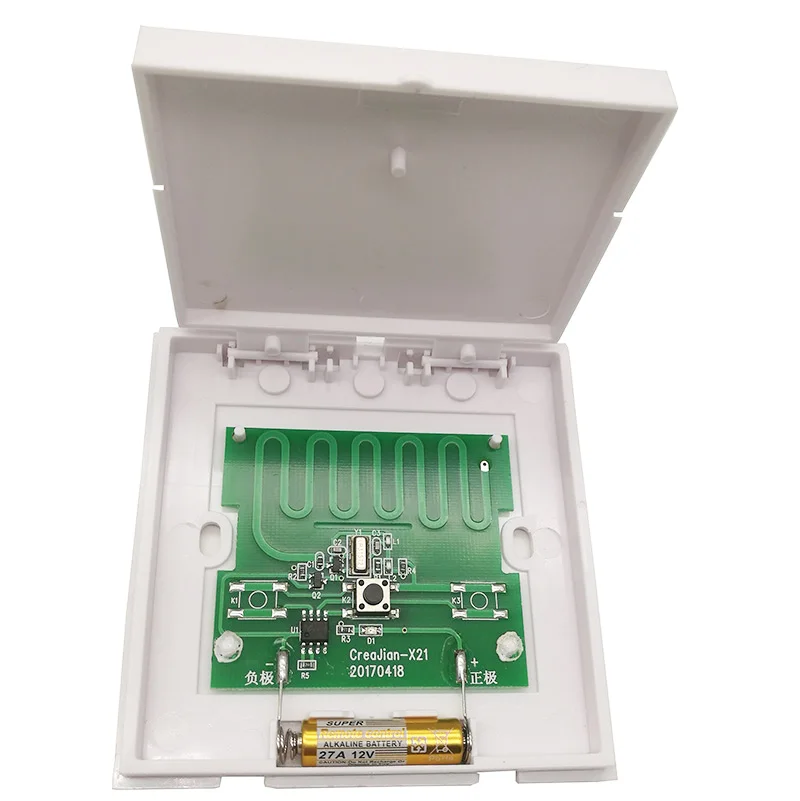

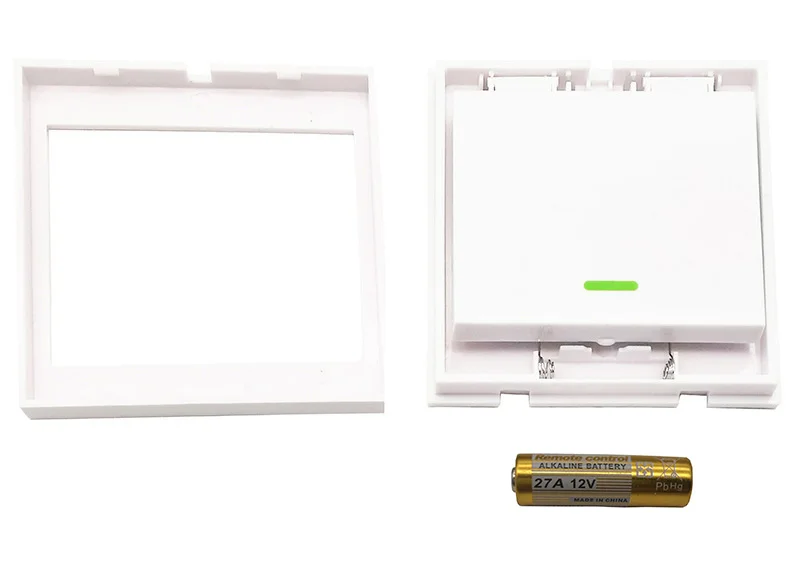

2.Transmitter

It is a panel 86 wall transmitter that can be stuck anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver, it can work with any kind learning code receiver in our store.

Channel: 1CH

Remote Control Distance:0-100m

Encode: EV1527

Frequency:315 or 433.92

Current:20-25ma

Power Supply: 12V 27A Battery (NOT included)

3.Function: (original setting is Toggle,if you want to change it,weld it by yourself.)

Momentary:Press the Transmitter button , the receiver relay is ON, release button; the receiver relay is OFF,

Toggle:Press transmitter button for 1 time , the receiver relay is ON, press button again, the receiver relay is OFF,

Latched:Press transmitter button A, the receiver relay is ON, Press the transmitter button B, the relay is OFF.

4.Learning Method:

Learn: input the 220V for the receiver,press the learning button until the LED indicator ON.Then press the transmitter ,the indicator flash fast,it means learning successfully.

Remove:keep pressing the learning button on the receiver aboout 10 seconds until the indicator ON and flash fast,it means the codes is cleared successfully.

pacote inclued:

A:

1 x Receiver(with cover)

4 x Transmitter(No Battery inside)
