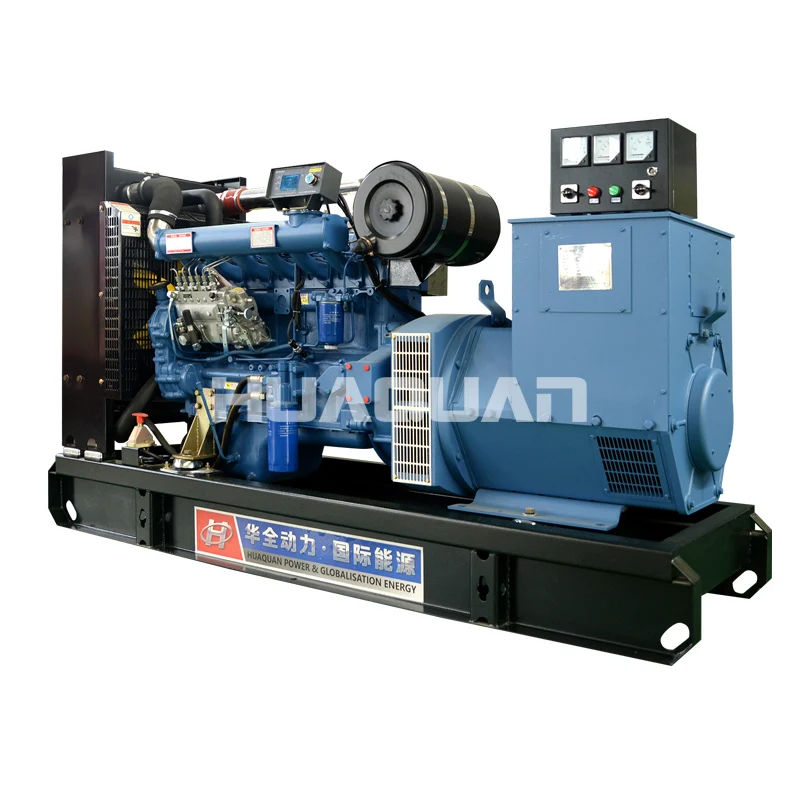

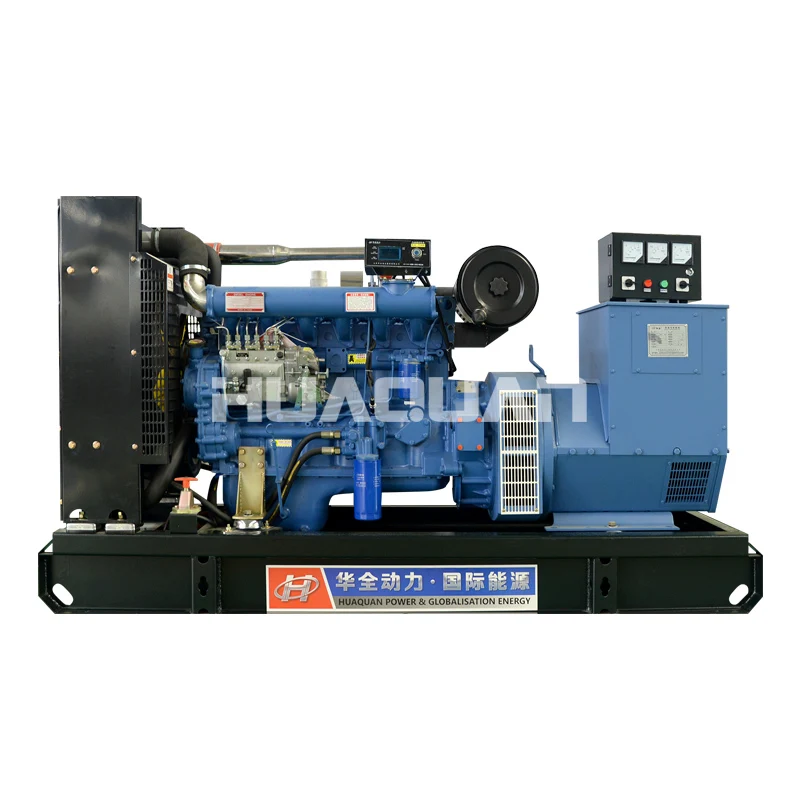

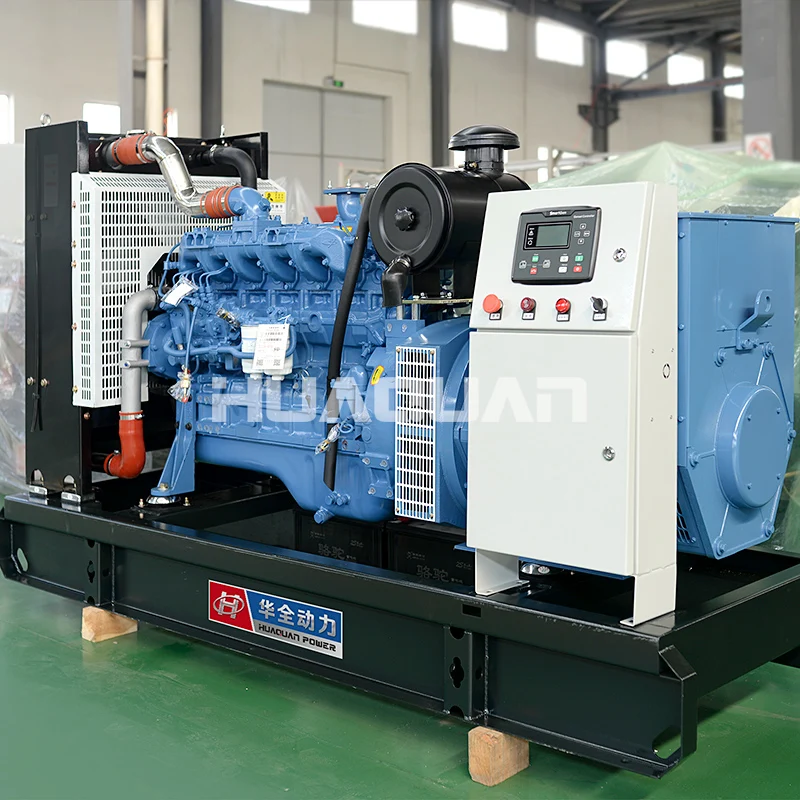

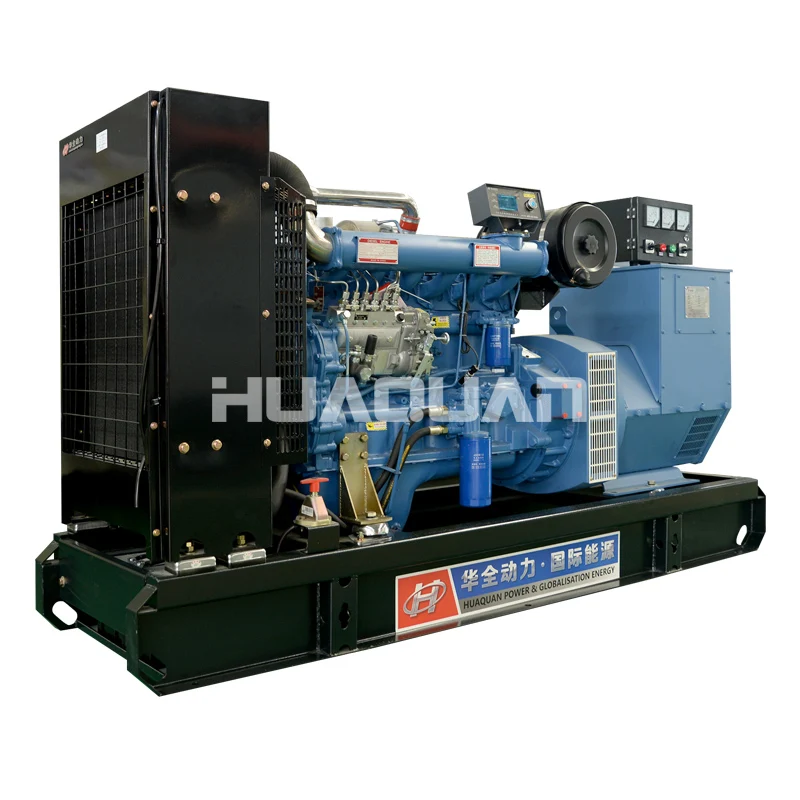

120kw 150kva disel generator set ricardo engine | Обустройство дома

1、120 kW generator set, closed water circulation cooling: the system runs intelligently, the performance is stable, and no staff is required; the solution can be completely degraded and discharged directly without increasing the cost of subsequent sewage treatment.

2、Turbocharging: Improve fuel economy, reduce exhaust emissions, and increase engine power.

3、Three-phase, DC24V electric start, speed 1500rpm, strong overload capacity, to ensure the normal and safe operation of the unit.

4、It has long service life and strong versatility of parts and components, and can run for a total of 1000 hours after passing the acceptance.

5、The steel common base and the vibration-damping rubber pad effectively relieve the vibration of the unit and increase the service life of the unit.

Genearal

Unit model:

HQ120GF

Steady state voltage adjustment rate (%):

≤± 1

Output power:

120KW

Voltage fluctuation rate (%):

≤ ± 0.5

Power factor:

COSΦ = 0.8 (lagging)

Transient voltage adjustment rate (%):

＋20 ～－15

Output voltage:

400V / 230V

Voltage stabilization time (s):

≤1

Output current:

216A

Steady state frequency adjustment rate (%):

≤ ± 1

Rated frequency:

50Hz

Frequency fluctuation rate (%):

≤ ± 0.5

Rated speed:

1500rpm

Transient frequency adjustment rate (%):

+ 10 ~ -7

Fuel grade:

(standard) 0 # light diesel (normal temperature)

Frequency stabilization time (S):

≤3

Dimensions:

2300×850×1600（L×W×H mm）

Fuel consumption (100% load):

218g/kW·h

Start mode:

1200kg

Acoustic noise (LP7m):

95dB（A）

Technical parameters of diesel engine

Brand/origin：

Ricardo engine

Cooling method:

Closed water-cooling

Model:

R6105IZLD

Oil supply method:

direct injection

Number of cylinders / Dare to mention structure:

6 / L Type

Speed regulation method:

Mechanical

Bore stroke:

105×135 mm

Intake method:

Turbo

Compression ratio:

19：1

Overload capacity:

110%

Weight：

DC 24V Electric start

Speed:

1500rpm

Technical parameters of generator

Brand：

Huaquan Brushless Generator

Protection level：

IP22

Model：

HQF-120

Wiring mode：

Three-phase four-wire, Y-connection

Rated power:

120kW

Adjustment method:

AVR (Automatic Voltage Regulator)

Rated voltage:

400V / 230V

Output frequency:

50Hz

Insulation class:

H class

Output factor:

COSΦ = 0.8 (lag)

Genset standard features

Ø Direct injection internal combustion engine(Diesel)；

Ø AC synchronous generator（Single Bearing）；

Ø Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；

Ø Generation output air switch、Standard control panel；

Ø Steel common base with shock absorber；

Ø Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；

Ø starter battery and connecting cables；

Ø Industrial 9dB muffler and accessories；

Ø The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；

Optional accessories（Extra charged）

Ø Engine oil、diesel、water jacket、Anti-condensation heater

Ø Battery floating charger

Ø Self-protection unit/self-starting control panel

Ø Tree-remote control panel

Ø ATS AUTO-loaded transferring screen

Ø Daily fuel tank、Integral fuel tank

Ø Waterproof type(Cabinet)

Ø Mobile trailer(Drip proof)

Ø Mobile trailer(Silent type)
