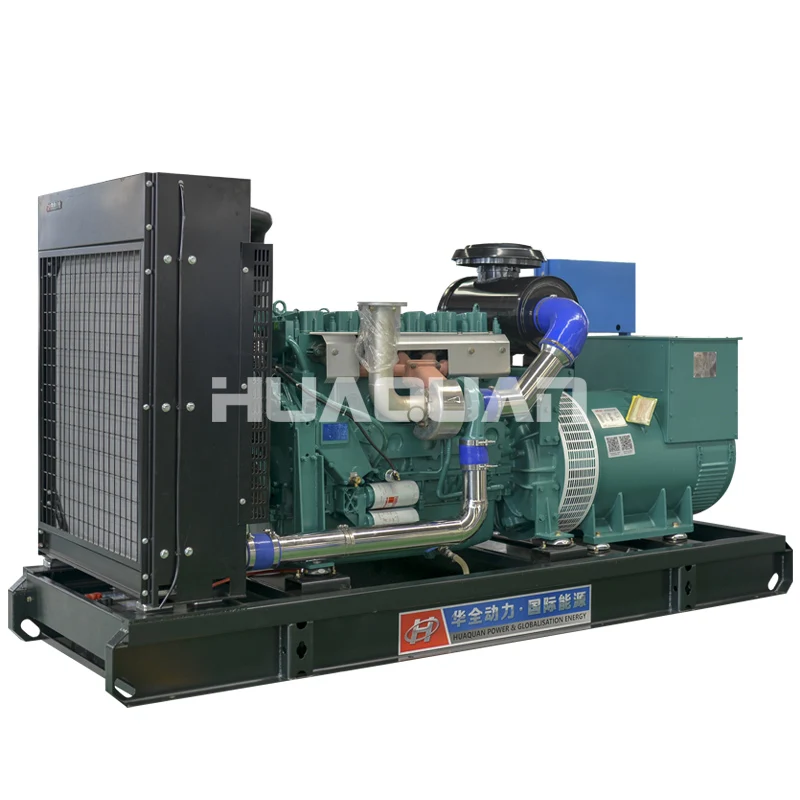

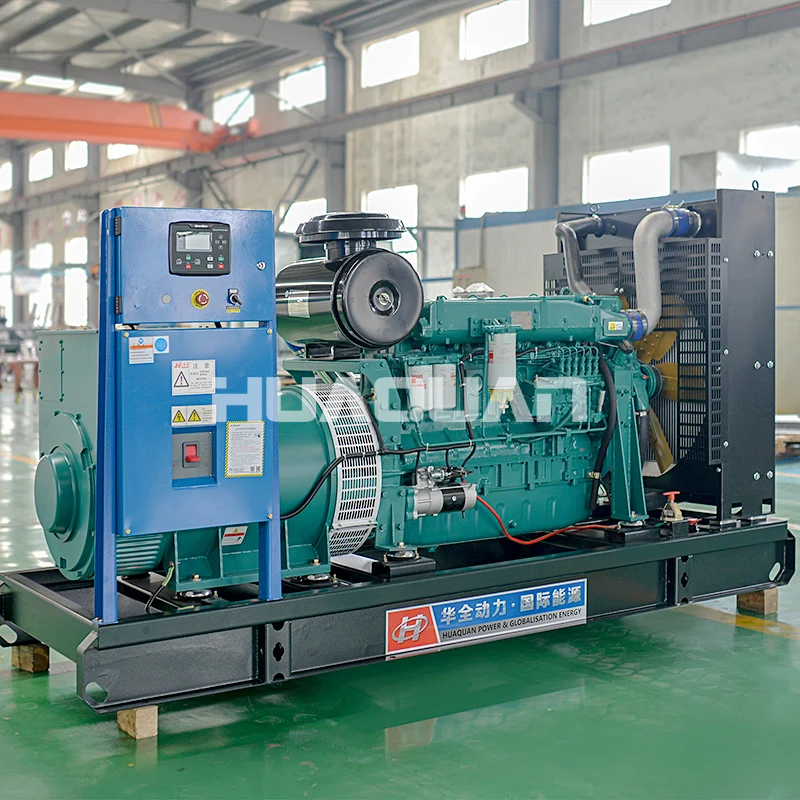

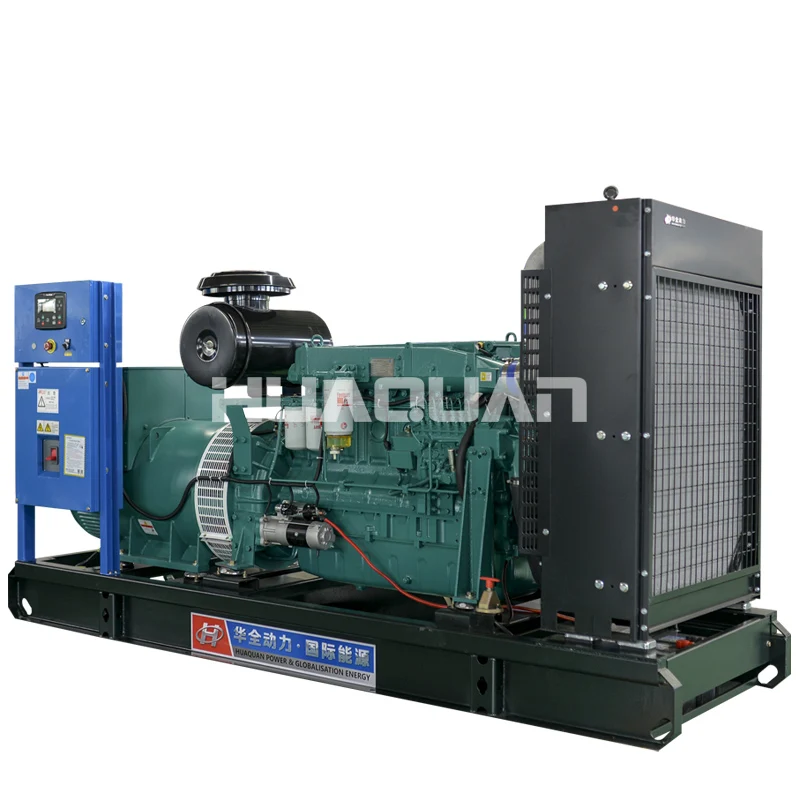

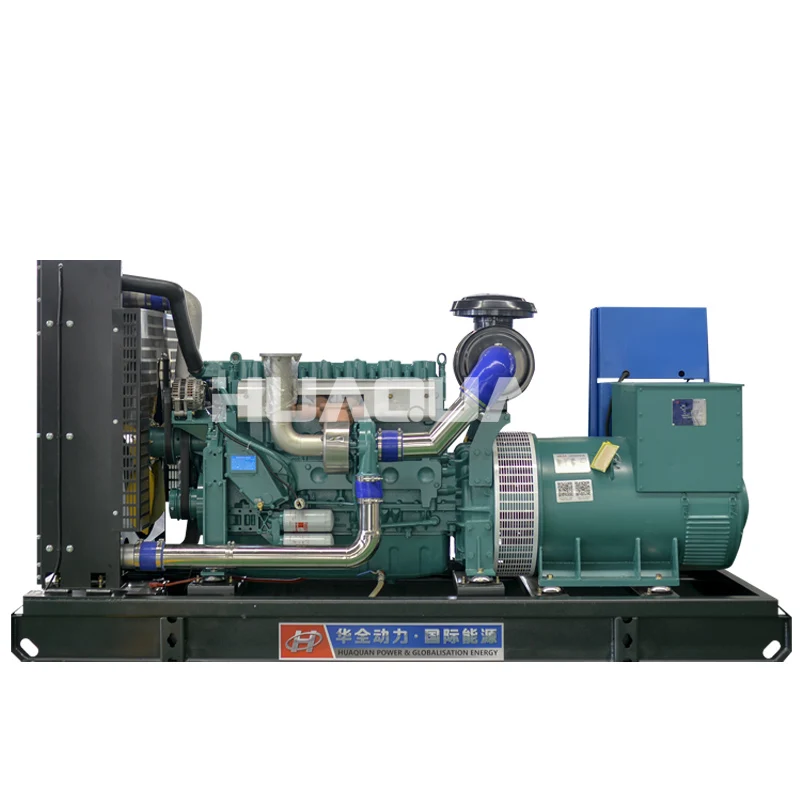

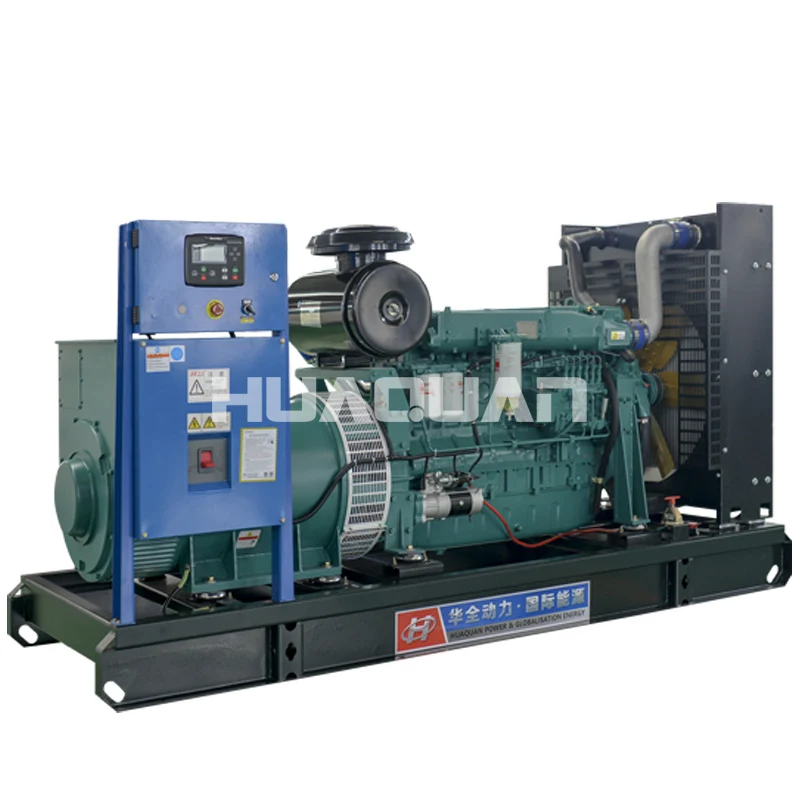

1、Huaquan 300-kilowatt generator set has full combustion and strong power: six-cylinder combustion and direct injection fuel supply.The unit starts quickly, runs smoothly, and has good transient speed regulation.

2、Turbocharging: Adequate air intake, full combustion, low fuel consumption, lower operating costs and bring high benefits.

3、Load an air filter to filter out dust and sand in the air. Fuel filter and lubricating oil filter ensure fuel cleanliness, easy maintenance, and save time and effort.

4、Large generator sets can be automatically voltage-adjusted: to prevent generators from generating voltages that are too high or too low to cause malfunctions in electrical equipment and damage to batteries. Protect the unit to extend its service life.

5、The steel common base and the vibration-damping rubber pad effectively relieve the vibration of the unit and increase the service life of the unit.

Genearal

Unit model:

HQ300GF

Steady state voltage adjustment rate (%):

≤± 1

Output power:

300KW

Voltage fluctuation rate (%):

≤ ± 0.5

Power factor:

COSΦ = 0.8 (lagging)

Transient voltage adjustment rate (%):

＋20 ～－15

Output voltage:

400V / 230V

Voltage stabilization time (s):

≤1

Output current:

540A

Steady state frequency adjustment rate (%):

≤ ± 1

Rated frequency:

50Hz

Frequency fluctuation rate (%):

≤ ± 0.5

Rated speed:

1500rpm

Transient frequency adjustment rate (%):

+ 10 ~ -7

Fuel grade:

(standard) 0 # light diesel (normal temperature)

Frequency stabilization time (S):

≤3

Dimensions:

3000×950×1700（L×W×H mm）

Fuel consumption (100% load):

208g/kW·h

Start mode:

2700kg

Acoustic noise (LP7m):

95dB（A）

Technical parameters of diesel engine

Brand/origin：

Ricardo engine

Cooling method:

Closed water-cooling

Model:

6126IZLD

Oil supply method:

direct injection

Number of cylinders / Dare to mention structure:

6 / L Type

Speed regulation method:

Mechanical

Bore stroke:

126×155 mm

Intake method:

Turbo

Compression ratio:

19：1

Overload capacity:

110%

Weight：

DC 24V Electric start

Speed:

1500rpm

Technical parameters of generator

Brand：

Huaquan Brushless Generator

Protection level：

IP22

Model：

HQF-300

Wiring mode：

Three-phase four-wire, Y-connection

Rated power:

300kW

Adjustment method:

AVR (Automatic Voltage Regulator)

Rated voltage:

400V / 230V

Output frequency:

50Hz

Insulation class:

H class

Output factor:

COSΦ = 0.8 (lag)

Genset standard features

Ø Direct injection internal combustion engine(Diesel)；

Ø AC synchronous generator（Single Bearing）；

Ø Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；

Ø Generation output air switch、Standard control panel；

Ø Steel common base with shock absorber；

Ø Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；

Ø starter battery and connecting cables；

Ø Industrial 9dB muffler and accessories；

Ø The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；

Optional accessories（Extra charged）

Ø Engine oil、diesel、water jacket、Anti-condensation heater

Ø Battery floating charger

Ø Self-protection unit/self-starting control panel

Ø Tree-remote control panel

Ø ATS AUTO-loaded transferring screen

Ø Daily fuel tank、Integral fuel tank

Ø Waterproof type(Cabinet)

Ø Mobile trailer(Drip proof)

Ø Mobile trailer(Silent type)
