High configuration Mini Fiber Laser Marking Machine / Fiber Mark Machine





Product Description

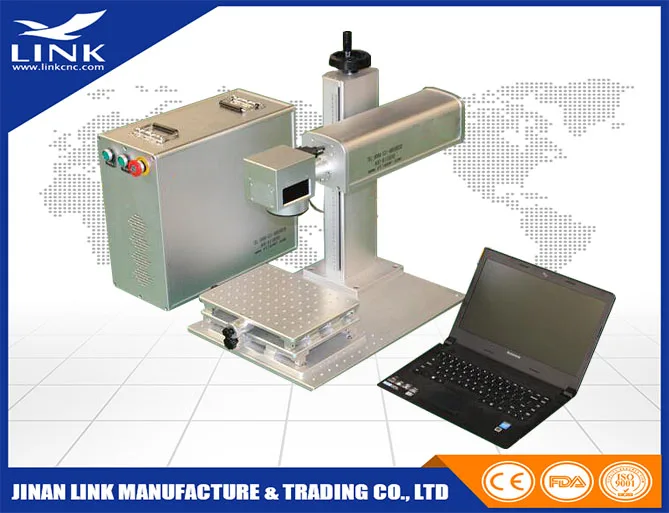

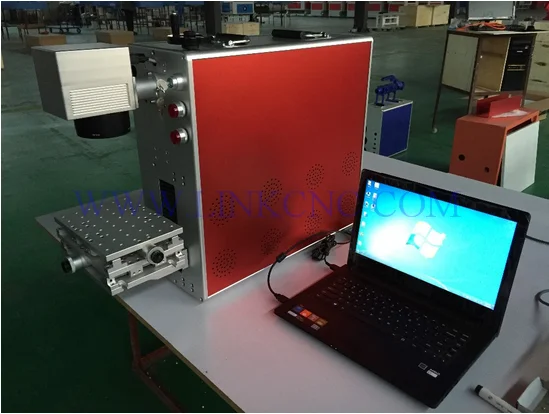

Machine Pictures

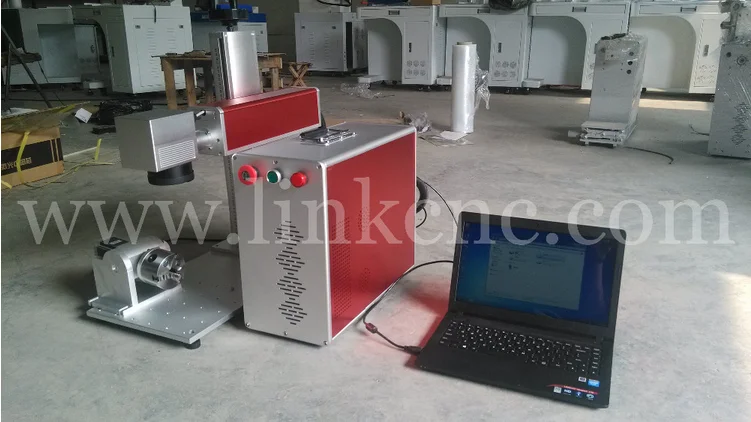

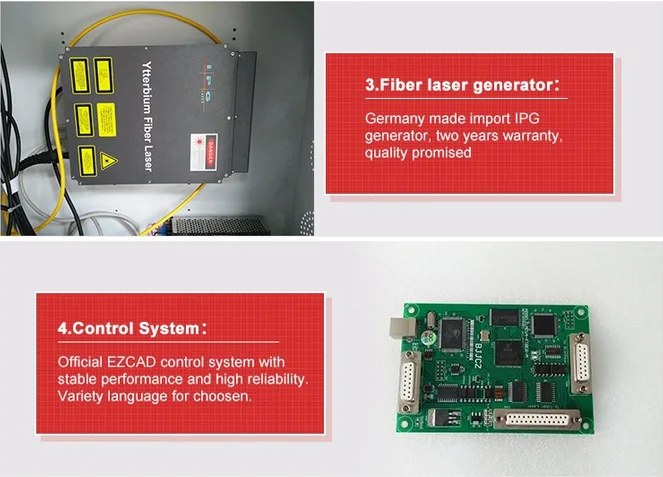

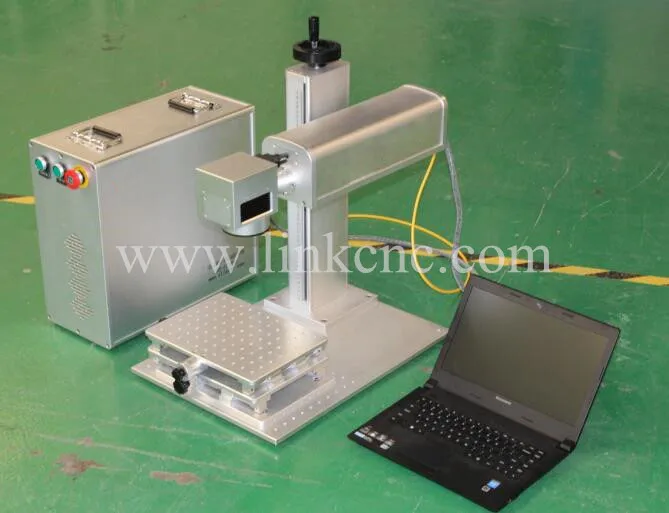

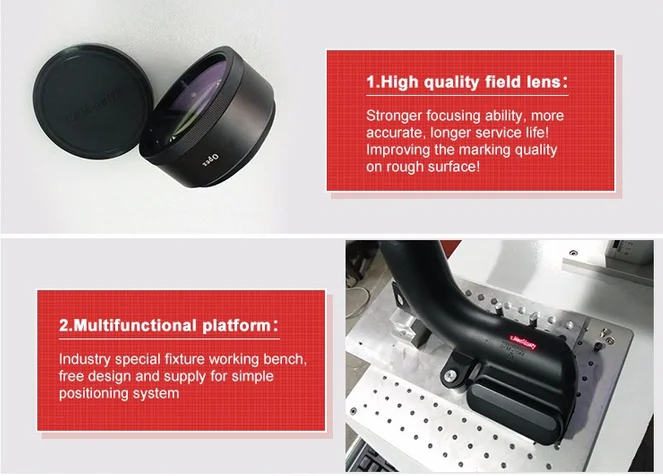

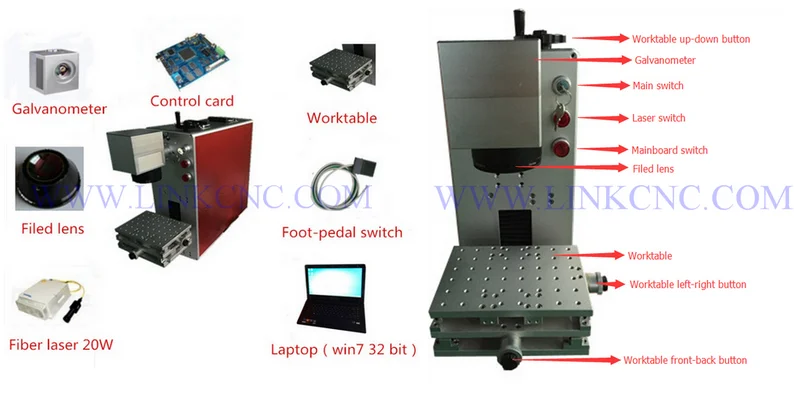

Detailed Image











Technology Parameters

Model	LXFiber
Laser type	fiber
Laser  power	20 (10W/30W/50W for optional)
Laser wavelength	1064nm
Repetition rate	20-200KHZ
Marking area	50*50/70*70/110*110mm
Marking depth	<0.5mm
Marking line-speed	<1200mm/s
Min. line width	0.012mm
Min. character size	0.15mm
Repeat accuracy	+/-0.003mm
Total power	0.5/0.6KW
Power supply	AC220V±10% ,50Hz
Cooling system	air cooling/water cooling
Working temperature	0 -45°C
Working humidity	5-95%  free of condensate water
Dimension	750*350*580mm
Net weight	46.5KG







Features

1. Updating to 3th-generation laser marking machine. 2. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction.     Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is     only 1/4 ofdiode laser. Focus dot diameter is not over 20 um. 3. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power     surge is lower than 1%. Easy control laser dot size, thickness and shape. 4. High speed 2-3 times over than traditional diode pumped marking machine. 5. Air-cooling smart machine size! 6. Long lifetime. Ultra-low power consumption of 0.5 kw.     Efficiency conversion reach to over 30%. 7.Color marking.

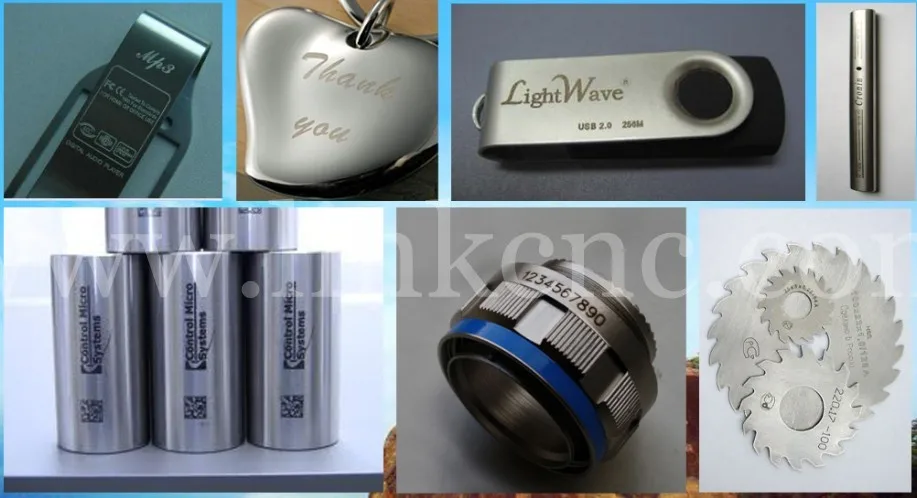

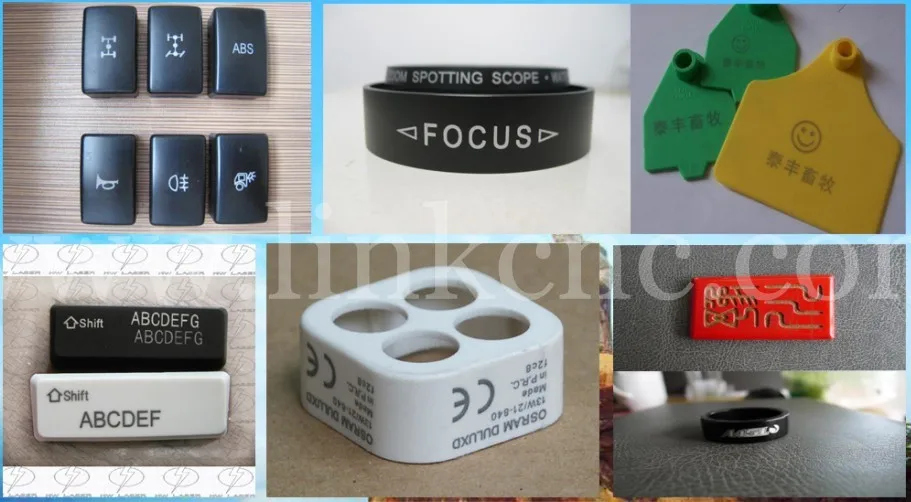

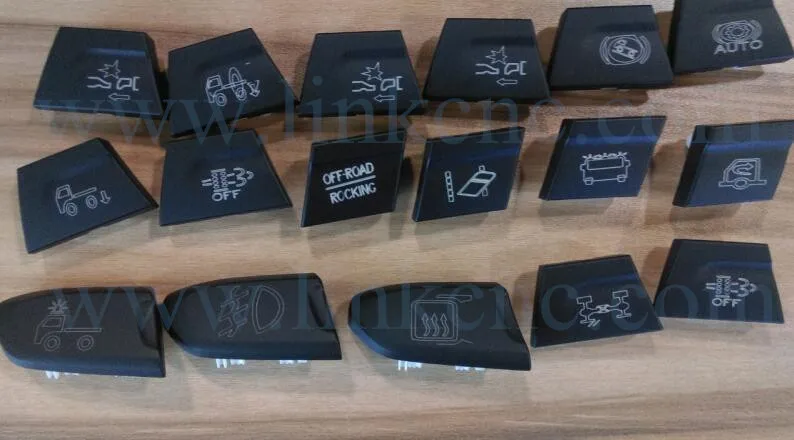

Samples



Our Service

1). 2 years quality guaranty, the machine with main parts(excluding the consumables) shall
 be changed free of charge when if any problem during the warranty period.
2). Lifetime maintenance free of charge.
3). Free training course at our plant.
4). 18 hours on line service and email each day, free technical support.
5). Machine has been adjusted before delivery.We will take machine photos and make
 machine working image for you ,after getting your agreement ,then we will book a ship.
6). Provide technical services to the door(We have professional engineers to offer machine
installation commissioning and maintenance) if customers pay the charges of ticket.
7). If you have any problem during your use.you need our technician to judge where
 the problem is and help you to solve it.     Packaging & Shipping

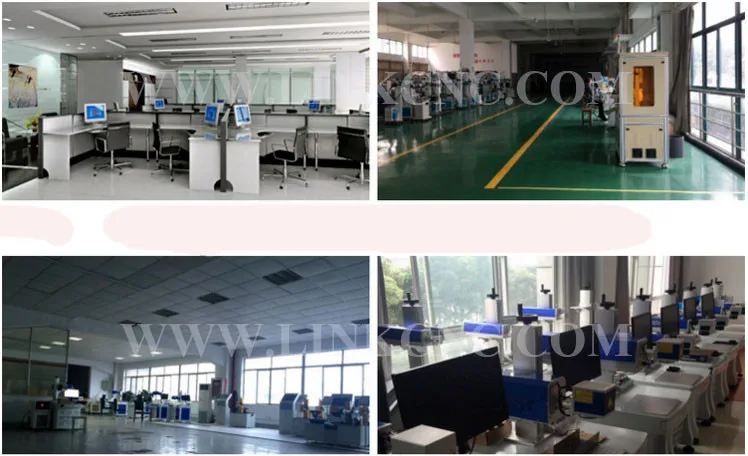

Company Information

Jinan Link Manufature & Trading Co.,Ltd.

is manufacturer and specialized in plasma cutting machine and cutterplotter,cnc router ,laser engraving

and cutting machine,with 13 years production and sales experience in this field and 8 year export

and service experinece for overseas’ buyers.
