AOKE learning code 4CH remote control switch AC220V AC110V lights on/off 315mhz/433.92mhz |

AOKE learning code 4CH remote control switch AC220V AC110V lights on/off 315mhz/433.92mhz |

Feature:

·         Wireless control, easy to install

·         Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC220V,AC85V-260V OR DC12V..

·         You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.

·         This switch can learn different coding remote controls (such as 2262,1527 ect.)

·         One/several transmitters can control one/several receivers simultaneously.

·         If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it won’t affect each other.

·         Operating  Frequency: 315MHz / 433MHz

·         The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.

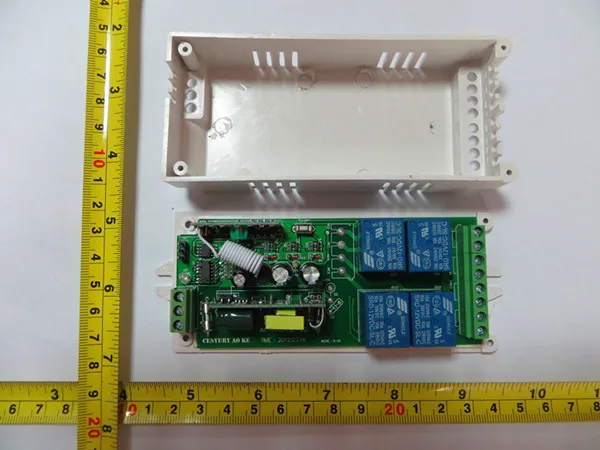

About  Receiver:

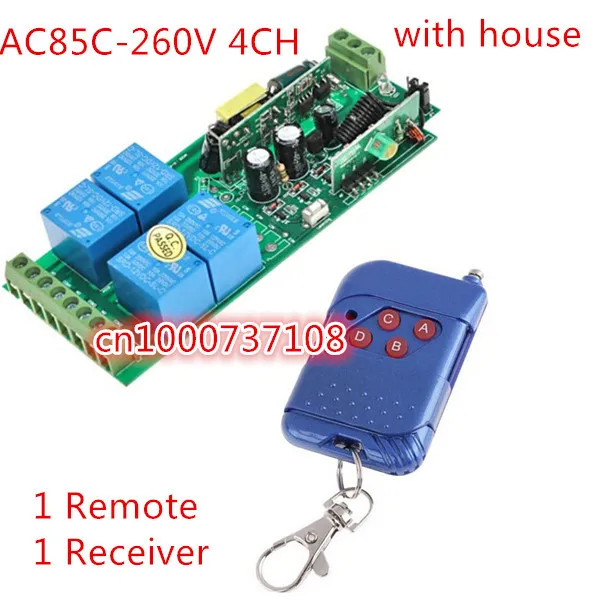

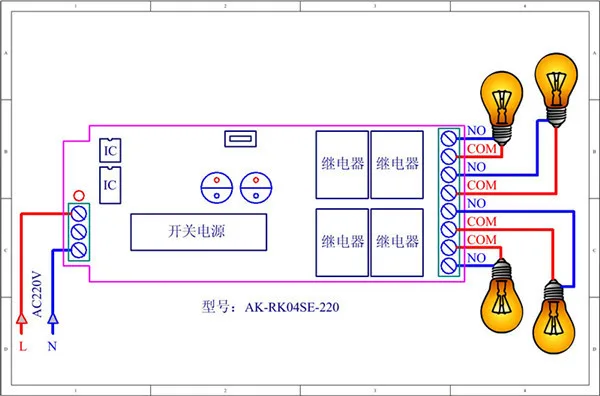

·         Model No.: AK-RK04SE-220

·         Channel: 4 CH

          Radio Frequency:315MHZ/433MHZ

          Operating Voltage:AC85V-260V

          Operating Type:Jog /Momentary/Non-Latched(Press and hold->On,Release->Off)

                                Interlock /Latched(Press -> On; Press other button -> Off)

                                Self-lock/Toggle(Press->On,Press again->Off)

·         Coding Type: learning code

·         Maximum Working Current: 10A

·         Output Mode: Without voltage output(also called Contact output)

·         Step-down approach: resistance-capacitance(RC)

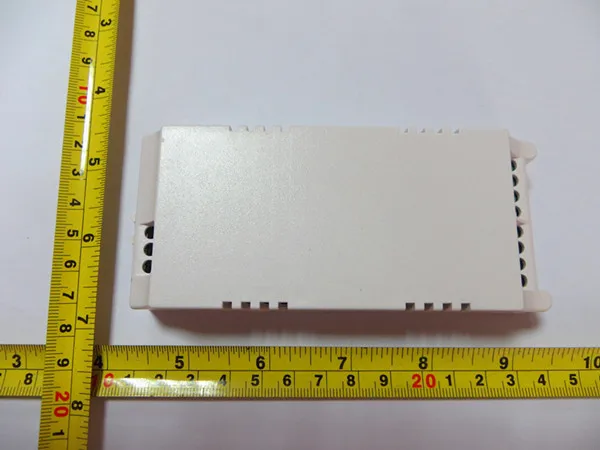

·         size: 107*48*21mm

About Working way/ output  Way:

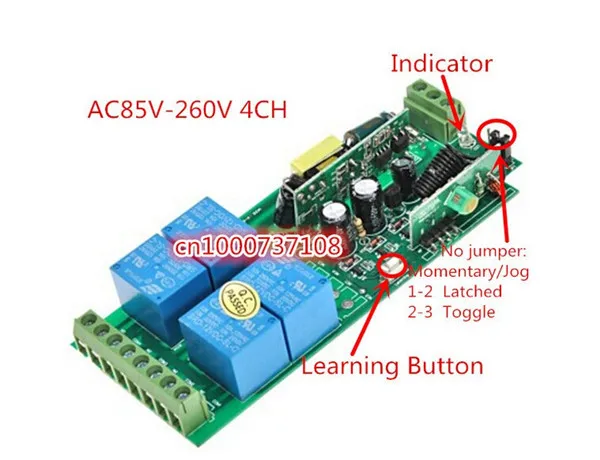

·         Output Working way for learning code switch-Jog, Self-Lock, interlock, changed by soldering or jump cap.

 Momentary/ Jog--Press and hold -> On; Release -> Off.

 Toggle/ Self-lock--Press -> On; Press again -> Off·

 Latched/   Interlock--Press -> On; Press other button -> Off.

About  Transmitter:

·         Model No.:AK-TF04

·         Buttons: 4 Buttons

·         Working Voltage:DC12V( 12V 23A  Battery x1  )

·         Operating  frequency :315/433MHz

·         Remote Control Distance: 20-100m

·         Encode: Fixed code by soldering and learning code

About Learning and clearing Method:

Learning:·         Press the learning key, it means the controller putting in the learning state when the indicator OFF, then please press any buttons of the remote control to transmit signals, the indicator will flash for 3 times,which means successfully studied.

·         After pressing any buttons of the remote control to transmit signal, the indicator didn’t flash, 10 seconds later it still recovers to normally on,  it  means study unsuccessfully.

Clearning:  Hold press learning button about 8 seconds,,indicator from OFF to ON,then press remote ,receiver did not work ,it means clearning code successful.

Pay attention:

·         The default setting of output way is SELF-LOCK; If you need other output way can leave a message to change it for you before the delivery.

·         Here is the 4  Channel switch and 4-button remote control .you can choose the working way as you need.

·         The theoretical distance is 20-- 100m, which shall be operated in an open ground; no barriers and no any interference. However, in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance cannot reach 100m. If you need longer range, please choose other series of remote control, such as 1000m/3000ft; or you can add the External Extend Antenna or Transponder on the receiver to extend the range.

Package Include:

·         10 x Receiver:AK-RK04SE-220 (with cover)

·         10 x Transmitter: AK-TF04  (with battery)

You may also like our products:

RF smart home controller Receiver DC12V 4CH transmitter +receiver HD04 Remote ,Momentary toggle inter-lock can adjust US$ 20.58/set

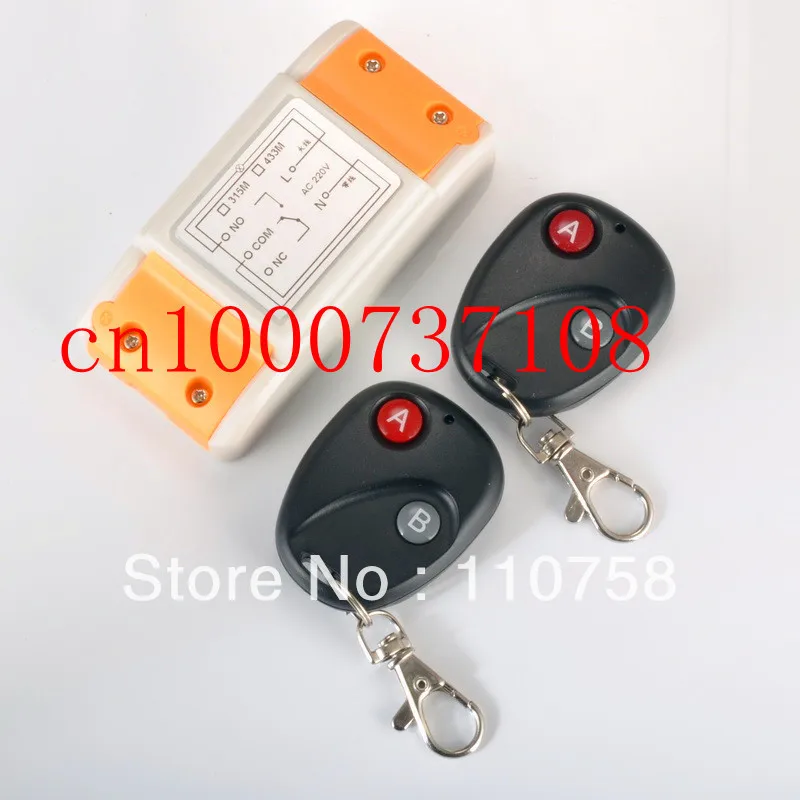

Free shipping RF wireless remote control Radio Controllers/Switch #1 Receiver&2 Transmitter 220V 10A Learning code US$ 18.55/set

remote Copies frequency and code at one time,daplicator for most frequency in the market ,face to face copy US$ 1001.00/lot pieces / lot

HOT!free shipping The curtain controller Projection screen controller remote control system US$ 21.80/set

Toggle Momentary Free Shipping DC 12V 10A 1 CH Learning Code RF Wireless Remote Control Switch Systems 1 Receiver 1 controller US$ 16.88/set

AK-RK04S-12 free shipping DC 12v 4ch Rf Wireless Remote Control Switch 315M /433.92MHZ wieless transmitter and receiver US$ 23.85/set

DC 12V 8 CH channel RF Wireless Remote Control Switch remote control AK Learning code 8 relays RF switch with CE US$ 163.00/lot sets / lot

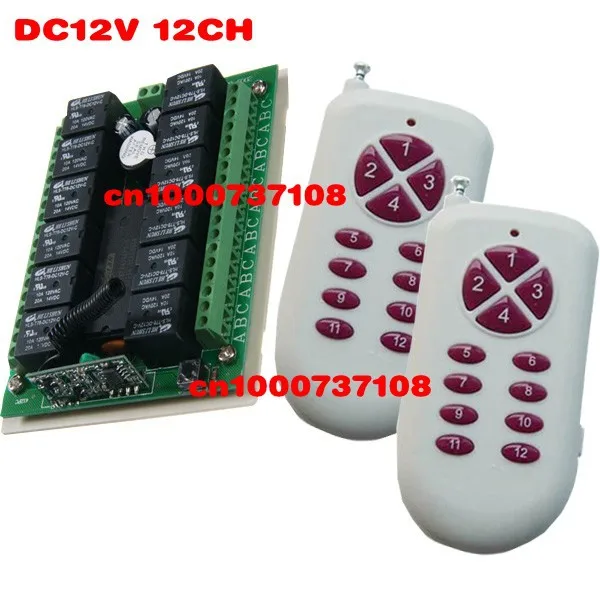

Remote control switch 12v 12 CH learning code light relays momentary rf switches with CE certification US$ 119.00/lot sets / lot

315/433.92MHz RF Transmitter Receiver Remote Control Switches DC12V 6CH 10A Relay Controller Remote Lighting ON OFF Switch US$ 24.50/set

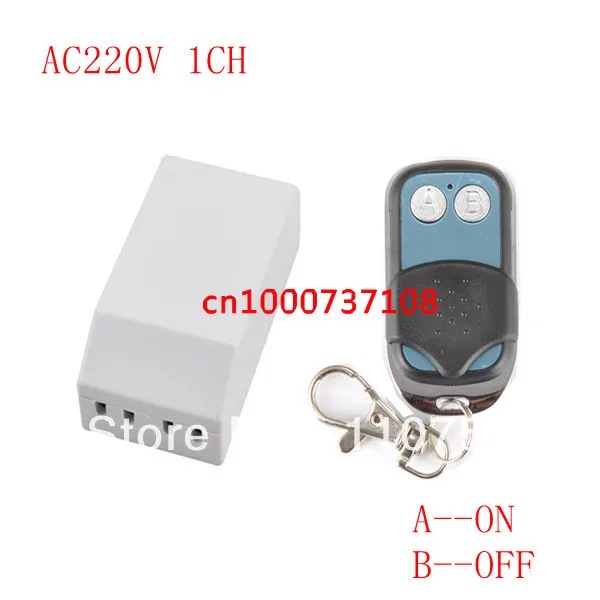

220V 1CH RF Wireless Remote Switch Receiver&Transmitter Light Lamp LED SMD ON OFF Switch10A Relay Momenrary Toggle 315/433.92 US$ 101.00/lot sets / lot

AC220V 1CH RF remote control switch learning remote control 433.92 wireless remote control light switch US$ 23.00/set

DC12V 10 A mini 1 CH RF Wireless Remote Control System 1Ch for light /lamp Home appliances US$ 27.00/set

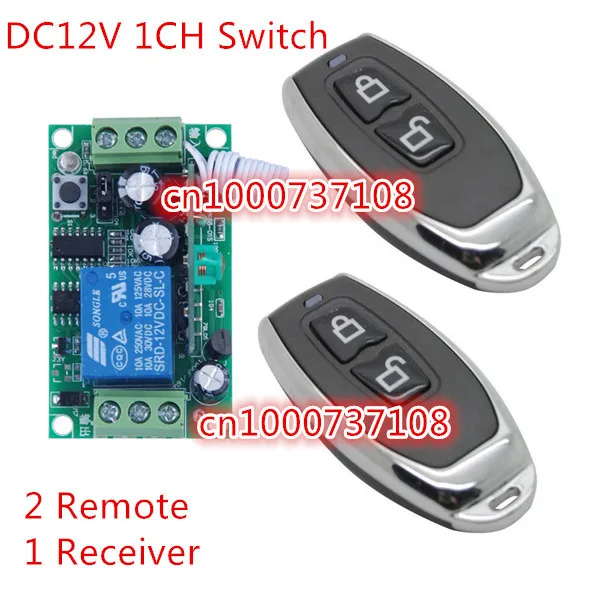

SG post Free shipping DC 12v 10A 1CH wireless RF Remote Control Switch 2 Remote+1 Receiver Inter-lock ON/OFF relay switch US$ 17.85/set

4ch on/off relay switch DC12V 4CH RF Wireless Remote Control Switch System 315MHZ 433MHZ Transmitter And Receiver US$ 175.00/lot sets / lot

DC12V 10A 4 ch rf wireless lamp led control 433.93mhz radio transmitter smart home receivers for garage door radio switch US$ 20.50/set

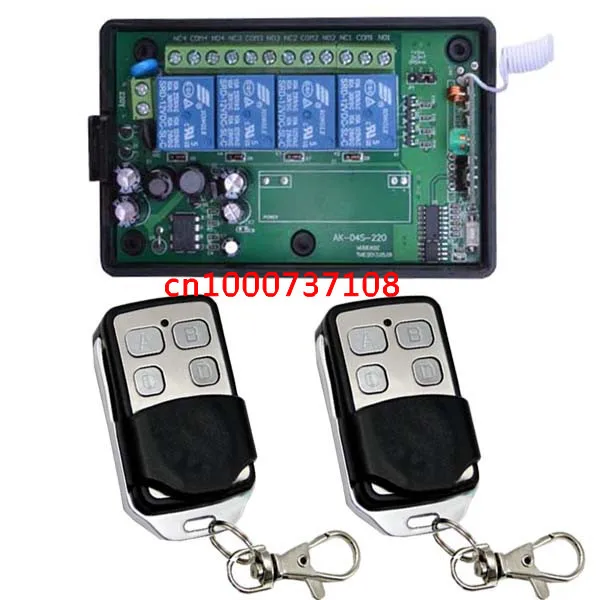

AC110V 220V 4CH RF Wireless Remote Control System / Radio Switch remote switch 220v Learning code receiver US$ 24.55/set
